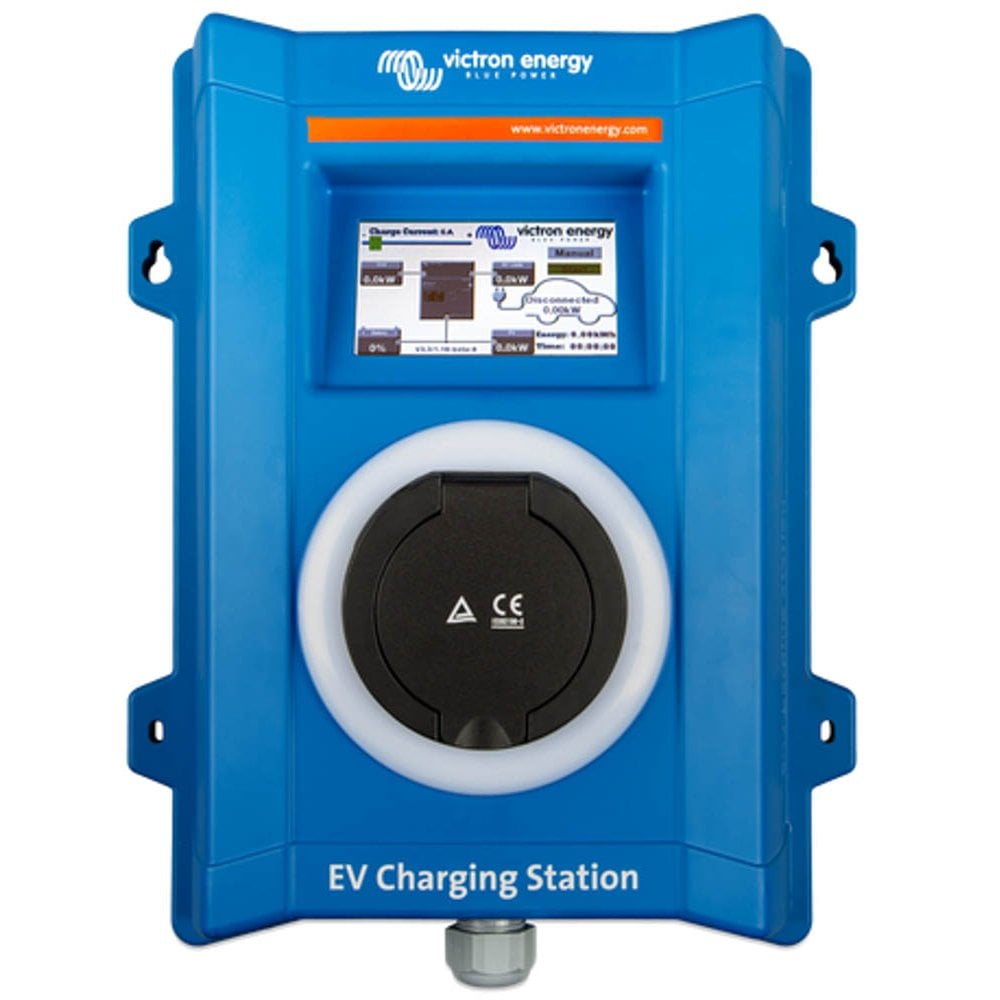

EV Charging Station - WiFi Electric Vehicle Charger EVC300400300

EV Charging Station - Electric Vehicle Charger EVC300400300

High Power AC Charger -22 kW The maximum power the EV Charging Station can deliver is 22 kW in 3phase mode or 7.3 kW per phase. It also can be used in single phase installations.

Wi-Fi: 802.11 b/g/n for configuration and monitoring For the initial setup but also for monitoring, the internal Wi-Fi module can be configured in Access Point mode or Station mode.

Touch Screen 4.3-inch touch screen for monitoring and control.

Light Ring Fully programmable Light Ring around charging port, to fast determine the state of the device. It can be programmed on the web interface to display different light effects base on the current state (disconnected, charging, charged etc)

Automatic mode To ensure maximum PV system efficiency, the EV Charging station has an Automatic mode that detects when excess power is available, and use only that power to charge the vehicle

Manual mode Configurable output current 6-32A

Real-time data display options - Colour Control GX or other GX devices: see the Venus documents on our website. - On the webpage of the device - On the VRM portal

Now on the main Victron Energy web page you will see the system information and the current flowing in this system

There are 2 working modes - Manual and Automatic.

Manual Mode

In this mode, we can control the charging power by using the slider on the LCD screen or the web page. We can start or stop the charging process by pressing the “Startâ€ù or “Stopâ€ù button when a vehicle is connected to the charger. The state of the device will be displayed all the time, inside the car symbol.

Auto Mode

This mode is used to charge the EV, only using the excess power. In the “Auto ON Gridâ€ù menu, the parameters for this mode can be configured. 2 values are important for controlling this mode - the power exported to the grid and the power discharged from the battery. When those 2 are configured, the device will use all the excess power, so the exported power is as close to 0 as possible.

Specifications:

• Ev Charging Station 22kW
• Input voltage range (V AC): 170-265
• Rated charge current: 32A/phase
• Nominal power: 22kW
• Current output range: 6-32A
• Wi-Fi standards: 802.11 b/g/n (2.4Ghz only)
• Self-consumption: 15mA@230V
• Configurable Max. Current: 10-32A
• Means to Disconnect: External circuit breaker (40A recommended)
• Configurable price/kWh calculator(Eur): Default setting: 0.13 (adjustable)
• Control type: Touch Screen, Web page, GX Device over Modbus TCP
• Light Ring: 55 light configurable light effects available
• Protection: External RCD is required
• Operating temperature: -25°C to +50°C
• Storage temperature: -40 °C to +80 °C
• Humidity: 95%, non-condensing
• Data communication: Modbus TCP over WIFI
• ENCLOSURE Colour: Blue (RAL 5012)
• Power terminals: 6-10 mmÂ_ / AWG 10-8
• Protection category: IP44
• Ventilation: not required
• Weight: 3 kg
• Dimensions (h x w x d): 390 x 300 x 150 mm
• STANDARDS Safety: IEC 61851-1, IEC 61851-22 ???
• Detection for Relay Contact welded
• Detection for missing protective conductor
• Detection for missing Ground
• Detection for shorted CP
